OMC Original (1.1) - board design

The Original OMC board design used for the first group build (also includes bias transistor fix instead of manual mod on R13)

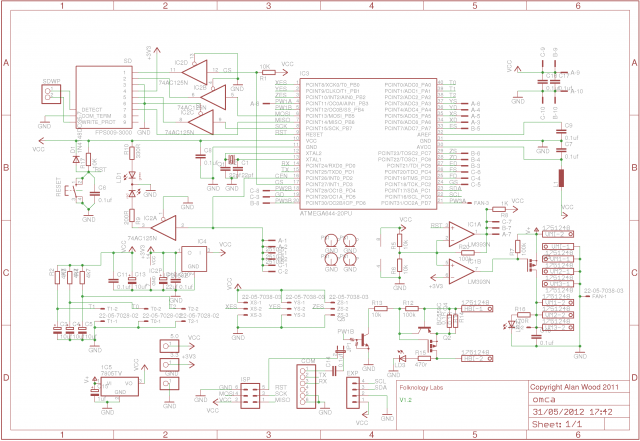

Schematic

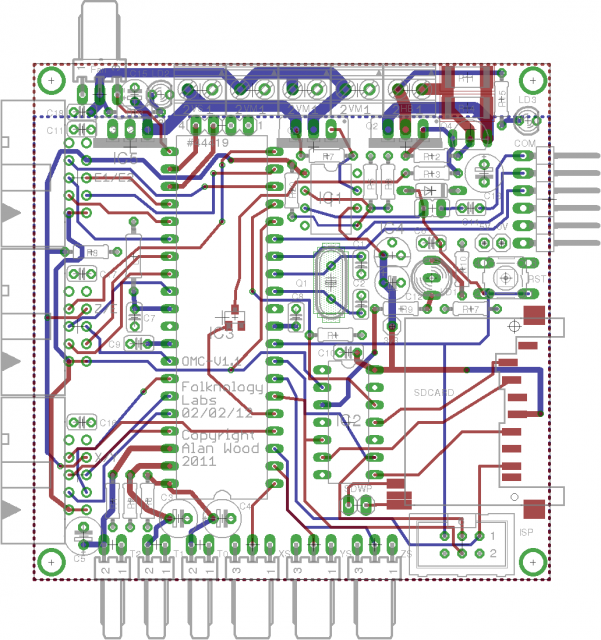

PCB layout

The design source files can be opened using Cadsoft's Eagle software

AttachmentSize
Licence.txt7.92 KB
omca.sch1.05 MB
omca.brd162.25 KB
